Acknowledgements in BizTalk

Acknowledgements in BizTalk

Today I want to talk to you about sending Acknowledgements from BizTalk which can be achieved with and without using Orchestration. Whenever we are using Request Response Receive adapter we need to send acknowledgements to the source application on receiving the message in the BizTalk. The Scenarios are listed down below:

–          2 way WCF-SAP Adapter

–          2 way MLLP Adapter

–          2 way WCF SQL Adapter

In some cases the messages just need an acknowledgement to ensure the message has reached the BizTalk and it is time to send the next message and in few other cases all the messages being sent are waiting for an acknowledgement to ensure the batch of messages in the queue can be deleted.

In few of the cases the acknowledgement are expected to the static response while in other cases they need some data, based on the received message, to be plugged in the response. There are many other Scenarios but just wanted to concentrate on very few ones here.

How to create the Acknowledgement and send it?

With Orchestration:

  1. Receive Message from Request-Response Port with Port bindings: ‘Specify later’
  2. Create the response (irrespective of the whether response is static or based on the request message) in the Construct Message Shape

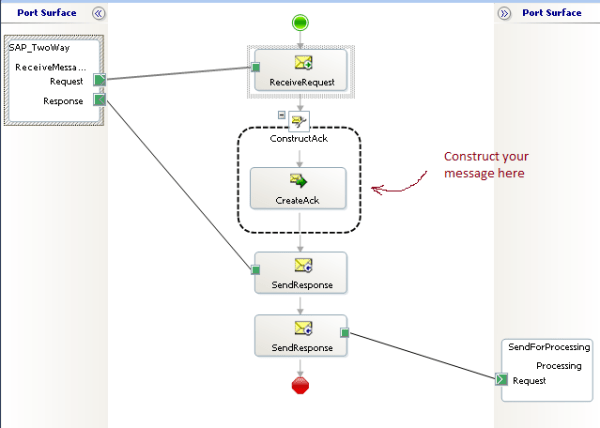

  3. Send Response message through Request-Response Port as depicted in the figure below

This is the simplest approach but overhead is this approach uses the XLang engine for acknowledgement

With Pipeline:

  1. The Code for the Pipeline component responsible for promoting the properties required for Ack and also to send the Ack is as below:
namespace PipelineComponents.Ack{

using   System;

using   System.IO;

using   System.Text;

using   System.Drawing;

using   System.Resources;

using   System.Reflection;

using   System.Diagnostics;

using   System.Collections;

using   System.ComponentModel;

using   Microsoft.BizTalk.Message.Interop;

using   Microsoft.BizTalk.Component.Interop;

using   Microsoft.BizTalk.Component;

using   Microsoft.BizTalk.Messaging;

using   Microsoft.BizTalk.Streaming;

[ComponentCategory(CategoryTypes.CATID_PipelineComponent)]

[System.Runtime.InteropServices.Guid(“bbcf1287-f4fb-41f8-97b2-b329e5153658”)]

[ComponentCategory(CategoryTypes.CATID_Any)]

public class Ack :   Microsoft.BizTalk.Component.Interop.IComponent,   IBaseComponent, IPersistPropertyBag,   IComponentUI

{

private   System.Resources.ResourceManager   resourceManager = new System.Resources.ResourceManager(“PipelineComponents.Ack.Ack”,   Assembly.GetExecutingAssembly());

private   bool _IsEnabled;

public   bool IsEnabled

{

get

{

return   _IsEnabled;

}

set

{

_IsEnabled = value;

}

}

private   bool _IsStaticResponse;

public   bool IsStaticResponse

{

get

{

return   _IsStaticResponse;

}

set

{

_IsStaticResponse = value;

}

}

private   bool _IsReceive;

public   bool IsReceive

{

get

{

return   _IsReceive;

}

set

{

_IsReceive = value;

}

}

private   string _StaticResponse;

public   string StaticResponse

{

get

{

return   _StaticResponse;

}

set

{

_StaticResponse = value;

}

}

#region IBaseComponent members

/// <summary>

/// Name of the component

/// </summary>

[Browsable(false)]

public   string Name

{

get

{

return   “Ack”;

}

}

/// <summary>

/// Version of the component

/// </summary>

[Browsable(false)]

public   string Version

{

get

{

return   “1.0”;

}

}

// Author: Nihar   Malali

/// <summary>

/// Description of the component

/// </summary>

[Browsable(false)]

public   string Description

{

get

{

return   “For Acknowledgment”;

}

}

#endregion

#region IPersistPropertyBag members

// Author: Nihar   Malali

/// <summary>

/// Gets class ID of component for usage from unmanaged   code.

/// </summary>

/// <param   name=”classid”>

/// Class ID of the component

/// </param>

public   void GetClassID(out   System.Guid classid)

{

classid = new System.Guid(“bbcf1287-f4fb-41f8-97b2-b329e5153658″);

}

/// <summary>

/// not implemented

/// </summary>

public   void InitNew()

{

}

// Author: Nihar   Malali

/// <summary>

/// Loads configuration properties for the component

/// </summary>

/// <param   name=”pb”>Configuration   property bag</param>

/// <param   name=”errlog”>Error status</param>

public   virtual void   Load(Microsoft.BizTalk.Component.Interop.IPropertyBag   pb, int errlog)

{

object   val = null;

val = this.ReadPropertyBag(pb,   “IsEnabled”);

if   ((val != null))

{

this._IsEnabled   = ((bool)(val));

}

val = this.ReadPropertyBag(pb,   “IsStaticResponse”);

if   ((val != null))

{

this._IsStaticResponse   = ((bool)(val));

}

val = this.ReadPropertyBag(pb,   “IsReceive”);

if   ((val != null))

{

this._IsReceive   = ((bool)(val));

}

val = this.ReadPropertyBag(pb,   “StaticResponse”);

if   ((val != null))

{

this._StaticResponse   = ((string)(val));

}

}

// Author: Nihar   Malali

/// <summary>

/// Saves the current component configuration into the   property bag

/// </summary>

/// <param   name=”pb”>Configuration   property bag</param>

/// <param   name=”fClearDirty”>not used</param>

/// <param   name=”fSaveAllProperties”>not   used</param>

public   virtual void   Save(Microsoft.BizTalk.Component.Interop.IPropertyBag   pb, bool fClearDirty, bool fSaveAllProperties)

{

this.WritePropertyBag(pb,   “IsEnabled”, this.IsEnabled);

this.WritePropertyBag(pb,   “IsStaticResponse”, this.IsStaticResponse);

this.WritePropertyBag(pb,   “IsReceive”, this.IsReceive);

this.WritePropertyBag(pb,   “StaticResponse”, this.StaticResponse);

}

#region utility functionality

/// <summary>

/// Reads property value from property bag

/// </summary>

/// <param   name=”pb”>Property bag</param>

/// <param   name=”propName”>Name of   property</param>

/// <returns>Value of the property</returns>

private   object   ReadPropertyBag(Microsoft.BizTalk.Component.Interop.IPropertyBag   pb, string propName)

{

object   val = null;

try

{

pb.Read(propName, out val, 0);

}

catch   (System.ArgumentException )

{

return   val;

}

catch   (System.Exception e)

{

throw new System.ApplicationException(e.Message);

}

return   val;

}

/// <summary>

/// Writes property values into a property bag.

/// </summary>

/// <param   name=”pb”>Property bag.</param>

/// <param   name=”propName”>Name of   property.</param>

/// <param   name=”val”>Value of property.</param>

private   void   WritePropertyBag(Microsoft.BizTalk.Component.Interop.IPropertyBag   pb, string propName, object   val)

{

try

{

pb.Write(propName, ref val);

}

catch   (System.Exception e)

{

throw   new System.ApplicationException(e.Message);

}

}

#endregion

#endregion

#region IComponentUI members

/// <summary>

/// Component icon to use in BizTalk Editor

/// </summary>

[Browsable(false)]

public   IntPtr Icon

{

get

{

return   ((System.Drawing.Bitmap)(this.resourceManager.GetObject(“COMPONENTICON”, System.Globalization.CultureInfo.InvariantCulture))).GetHicon();

}

}

/// <summary>

/// The Validate method is called by the BizTalk Editor   during the build

/// of a BizTalk project.

/// </summary>

/// <param   name=”obj”>An Object containing   the configuration properties.</param>

/// <returns>The IEnumerator enables the caller to enumerate through a   collection of strings containing error messages. These error messages appear   as compiler error messages. To report successful property validation, the   method should return an empty enumerator.</returns>

public   System.Collections.IEnumerator Validate(object obj)

{

//   example implementation:

//   ArrayList errorList = new ArrayList();

//   errorList.Add(“This is a compiler error”);

//   return errorList.GetEnumerator();

return   null;

}

#endregion

#region IComponent members

public   Microsoft.BizTalk.Message.Interop.IBaseMessage   Execute(Microsoft.BizTalk.Component.Interop.IPipelineContext   pc, Microsoft.BizTalk.Message.Interop.IBaseMessage   inmsg)

{

if   (IsEnabled)

{

int   bufferSize = 0x280;

int   thresholdSize = 0x100000;

IBaseMessageContext   messageContext = inmsg.Context;

IBaseMessagePart   bodyPart = inmsg.BodyPart;

string   msgout = “”;

Stream   inboundStream = bodyPart.GetOriginalDataStream();

VirtualStream   virtualStream = new VirtualStream(bufferSize,   thresholdSize);

ReadOnlySeekableStream   readOnlySeekableStream = new ReadOnlySeekableStream(inboundStream,   virtualStream, bufferSize);

if   (IsReceive)

{

#region RecieveLogic

string   sysproperty_namespace = “http://schemas.microsoft.com/BizTalk/2003/system-properties&#8221;;

try

{

string EpmRRCorrelationToken = String.Empty;

bool   RouteDirectToTP = true;

object objEpmToken = messageContext.Read(“EpmRRCorrelationToken”,   sysproperty_namespace);

if (objEpmToken != null)

EpmRRCorrelationToken = (string)objEpmToken;

else

EpmRRCorrelationToken = System.Guid.NewGuid().ToString();

messageContext.Promote(“EpmRRCorrelationToken”,   sysproperty_namespace, EpmRRCorrelationToken);

messageContext.Promote(“RouteDirectToTP”,   sysproperty_namespace, RouteDirectToTP);

readOnlySeekableStream.Position = 0;

bodyPart.Data =   readOnlySeekableStream;

readOnlySeekableStream.Position = 0;

bodyPart.Data =   readOnlySeekableStream;

}

catch   (Exception ex)

{

throw (ex);

}

#endregion

}

else

{

if   (IsStaticResponse)

msgout =   StaticResponse;

else

{

//comment   the below line and add your Logic to create your Acknowledgement Message here

msgout =   StaticResponse;

}

}

VirtualStream   outStream = new VirtualStream();

StreamWriter   sw = new StreamWriter(outStream,   Encoding.Default);

sw.Write(msgout);

sw.Flush();

outStream.Seek(0, SeekOrigin.Begin);

inmsg.BodyPart.Data =   outStream;

pc.ResourceTracker.AddResource(outStream);

}

return   inmsg;

}

#endregion

}

}
  1. Build and Deploy this Pipeline Component
  2. Add this component in any stage of the pipeline
  3. The Configuration for Receive pipeline will look something like this

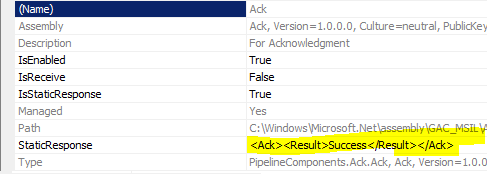

  5. The Configuration for the send pipeline will look something like this

How this works?

  1. If you look at the subscription you will observe that the Request-Response Receive location is has a subscription for response message and following screenshot depicts the details of the subscription
  3. Hence, Promote following 2 properties of the Request Message in Receive Pipeline of the Request-Response Receive Location

http://schemas.microsoft.com/BizTalk/2003/system-properties.EpmRRCorrelationToken

 And

http://schemas.microsoft.com/BizTalk/2003/system-properties.RouteDirectToTP

  1. The moment the Request message hits the message box the request message will be picked up by the Subscription waiting on the response message
  2. Now if the Acknowledgement is expected to be Static then Hardcode the Message in the Send Pipeline else write the business logic for creating the response message with the Pipeline component

For Static Response this will work Amazing with no performance overhead..

Happy Coding!!!
